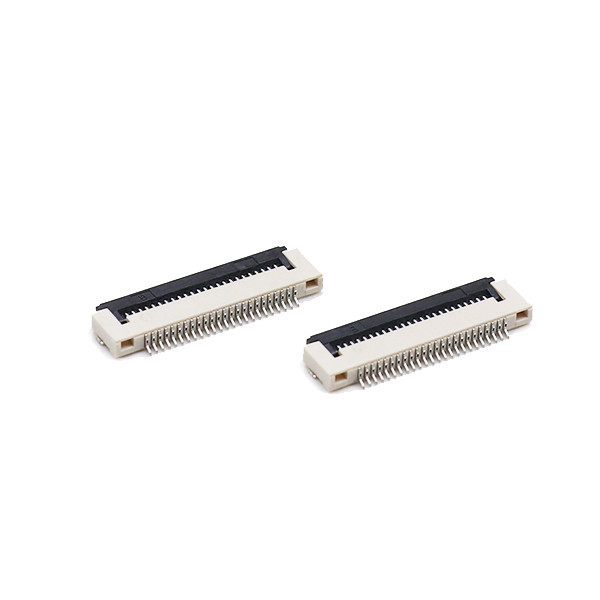

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact

  • 1
  • 2

Brand Name : XTKCONN

Model Number : FPC**-T1T1-0015-B

Certification : CE,SGS,ROHS,ISO9001

Place of Origin : Guangdong,China

MOQ : 500pcs

Price : Negotiable price

Payment Terms : L/C, T/T,Payyal

Supply Ability : 4KK pcs

Delivery Time : 5-7 days

Packaging Details : vacuum package,boxes in carton

Pitch : 0.5mm

Height : 1.5mm

No. Of Positions : 4-60pin

Operation Temperature : 40℃ to +85℃

Current Rating : 0.5A/Pin Max

Housing : LCP UL94V-0 Natural

Contact Now

0.5mm Height 1.5mm ZIF SMT FPC Connector Down contact

Super-fine pitch and small-size FFC/FPC Connectors with ZIF, slider, flip actuator and FPC-to-board styles and a variety of circuit sizes deliver both high reliability and speedy data rates.

This Series are FPC Connectors for consumer electronics, featuring a pitch of 0.5mm, right angle, and height of 1.5mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.

Description

Pitch 0.5mm
Height 1.5mm
Mounting Type SMT/ZIF
No. Of Positions 4-60pin
Contact Location/Type Dual contact,Back lock,Gold-plated PN:FPC**-T1S1-0015-A
Bottom contact,Front lock,Tin-plated PN:FPC**-T1T1-0015-B
Current Rating 0.5A/Pin Max
Voltage Rating 50V AC/DC MAX
Withstanding Voltage 250V AC,1min
Cover Material LCP UL94V-0 black
Housing LCP UL94V-0 Natural
Terminal/Contact Copper alloy
Plating Tin-plating
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact

Packaging & Shipment

FOB Port:Shenzhen

Lead time:7 working days

Packaging: reel in carton

Processing steps

Stamping / Injection -> pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test ->flatness test-->appearance test-->FQC test-->storage.


Product Tags:

1.5mm FFC FPC Connector



UL94V-0 FFC FPC Connector



0.5mm FPC smt connector


Quality LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact for sale

LCP UL94V-0 1.5mm ZIF SMT FFC FPC Connector 0.5mm Height Down Contact Images
